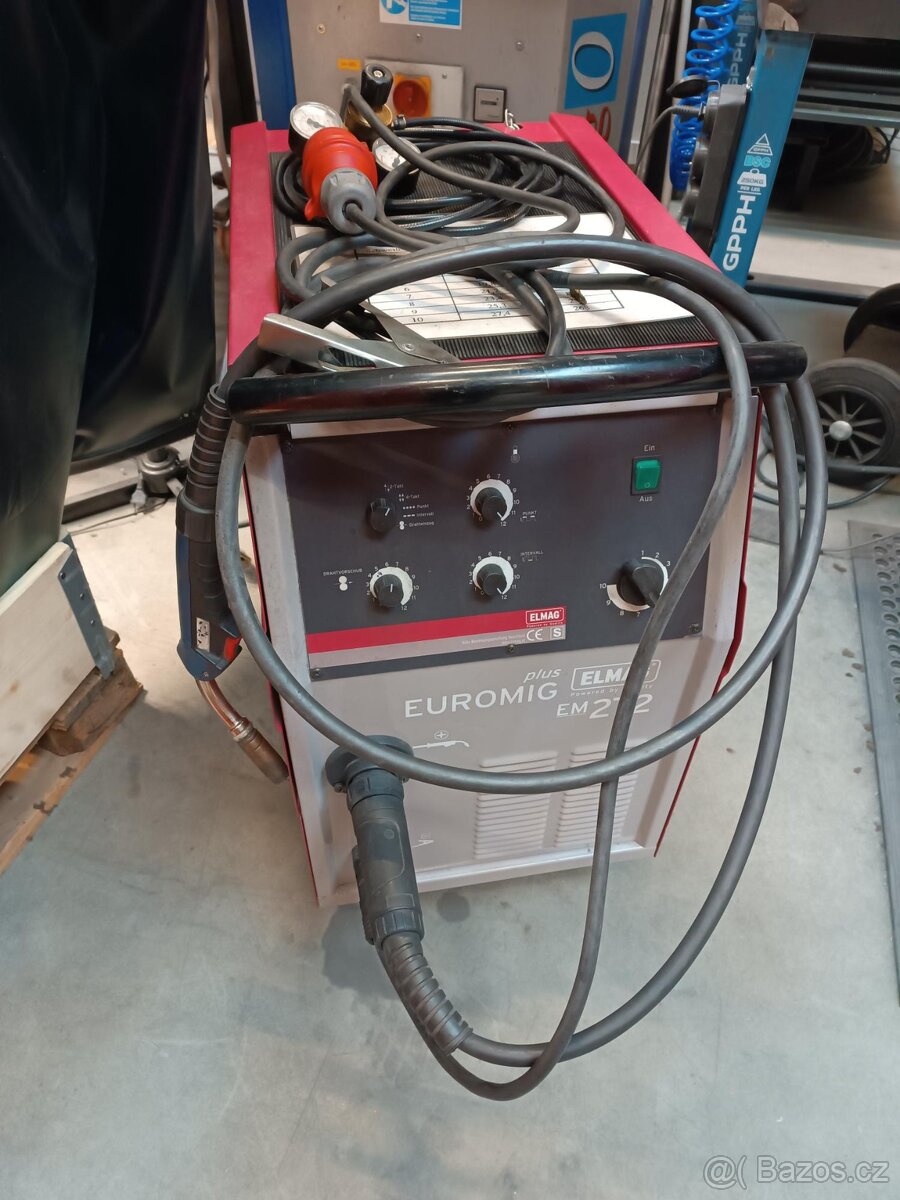

Svářečka CO2 ELMAG

Prodám svářecí zařízení CO2.
Svářečka je použitá, ale vypadá jako nová.

S kompletním vybavením - Hořák (BINZEL), zemnící kabel, podávací kladky (na 0,6-0,8mm a 1-1,2mm dráty), zbytek svařovacího drátu na vyzkoušení, redukční ventil. Stroj je vyčištěný a vyfoukaný a odzkoušný - můžete si u nás vyzkoušet.

Popis stroje:
Product Highlights ELMAG EUROMIG plus 272 shielding gas welding machine
Materials
- Steel
- CrNi
- Aluminium
Typical applications ELMAG EUROMIG plus 272 inert gas welding machine​
- Mechanical Engineering
- Steel construction
- Metalworking shops
- Forging
- Agriculture
Technical facts ELMAG EUROMIG plus 272 inert gas welding machine​
EUROMIG plus - Overview

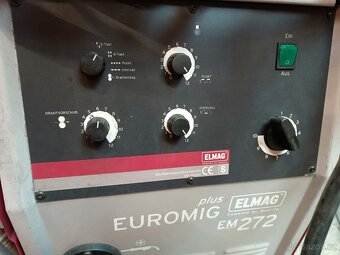

Ergonomic control panel, inclined arrangement
Fine step switch with ten switching steps
Wire feed controller stepless
Spot welding automatic stepless
Automatic interval welding stepless
operating mode switch: 2-stroke, 4-stroke, punk- & interval, welding mode, wire feed without gas consumption
Temperature control lamp - overload protection incl. automatic reset, thermal sensor integrated in transformer winding
Powerful cooling fans with thermostat control
Main switch with operating lamp
Dimensions fine/coarse Plug Ø 13 mm 35/50 mm² f. Materialst. small or large
Hose package connection Original BINZEL
Wire feed motor gear drive, two rollers
High power transformer with first-class, back-ventilated copper winding, winding materials insulation class H (180°C)
Optimally dimensioned silicon plate rectifier for highest welding current quality
Tool tray with anti-slip coating

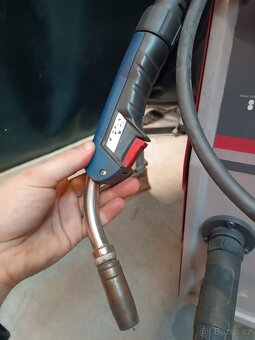

Original BINZEL hose package MB 25 / 3 m
Earth cable with welding cable plug / earth terminal

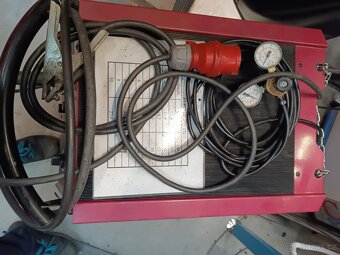

Pressure regulator / pressure gauge / flow meter
Feed rollers Wire diameter 0.6 / 0.8 mm
Feed rollers Wire diameter 1.0 / 1.2 mm
Wire spool adapter 5 kg / 200 mm
Wire spool adapter 15 kg / 300 mm
Hand welding shield PVC including welding glass
Separating spray for welding nozzles
Operating instructions / CE
Technical data ELMAG EUROMIG plus 272 shielding gas welding machine​
Material thickness: 0.5 - 10 mm
Steel / stainless steel wire diameter: 0.6 - 1.2 mm
Aluminium wire diameter: 1.0 - 1.2 mm
welding rod roll diameter: 200 / 300 mm
welding rod roll weight: 5 / 15 kg
Welding current setting range: 20 - 260 A
Welding current switching stages: 10 No.
100 % duty cycle (10 min. at 40 °C) at welding current: 100 / 120 A
Duty cycle (10 min at 40°C) at max. welding current: 20 / 260 % / A
Mains connection / phases: 400 / 3 V / ~
Mains frequency: 50 - 60 Hz
Mains fuse protection slow: 16 AT
Protection class (IP): 21 S
Connection sockets: Ø 13 / 35 mm²
Feed drive X/Y/Z: 2 rollers
Connection plug: CEE 16 A
width: 535 mm
depth: 840 mm
height: 780 mm
Weight: 85 kg

Highest quality of ELMAG machines
